May 2020 Updates

5/22/2020

0 Comments


May has introduced some changes. First, when I deployed to Kandahar Afghanistan in 2010, I resisted the norm to have a Facebook account. But at the time, finding it was so easy to message the family, I started one. I enjoyed much of the photography while I was deployed and my live videos hiking in the US. I also enjoyed Rolf Sheffey's Facebook group 5.2 and 5.9l magnum engines. That group was given much insight to my builds and ideas. The messenger was simply becoming overloaded. Every few hours I would have 20-30 messages that required detailed answers that I could no longer keep up with. On top of that I was answering another 20-30 on my tech email. So instead of being censored by FB for loving God, Guns, Trucks and Black Rifle Coffee, I deleted the account. The video issues with the website are now corrected! I created a small Youtube website and uploaded the majority of all the past Facebook videos from the 5.9 forum. So they are sprinkled on the site here and stream perfect. Here is the May 2020 video update from my mancave of freedom!

0 Comments

May 19th, 2020

5/19/2020

1 Comment



I am getting many emails on the latest debate concerning a stock intake reworked over the stock Hughes Airgap.

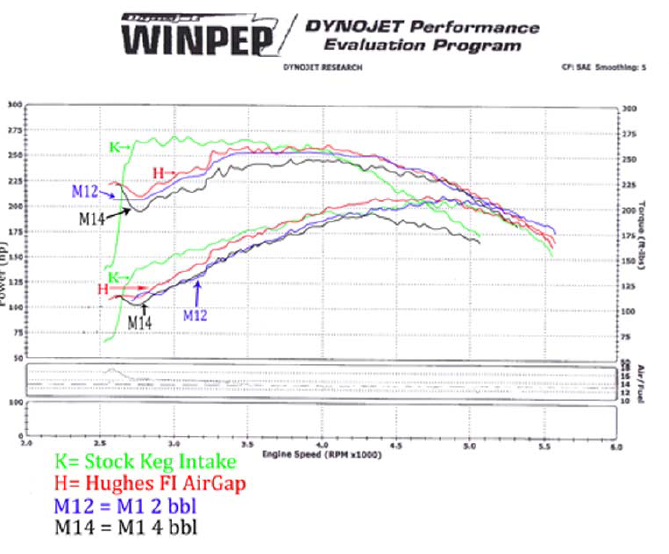

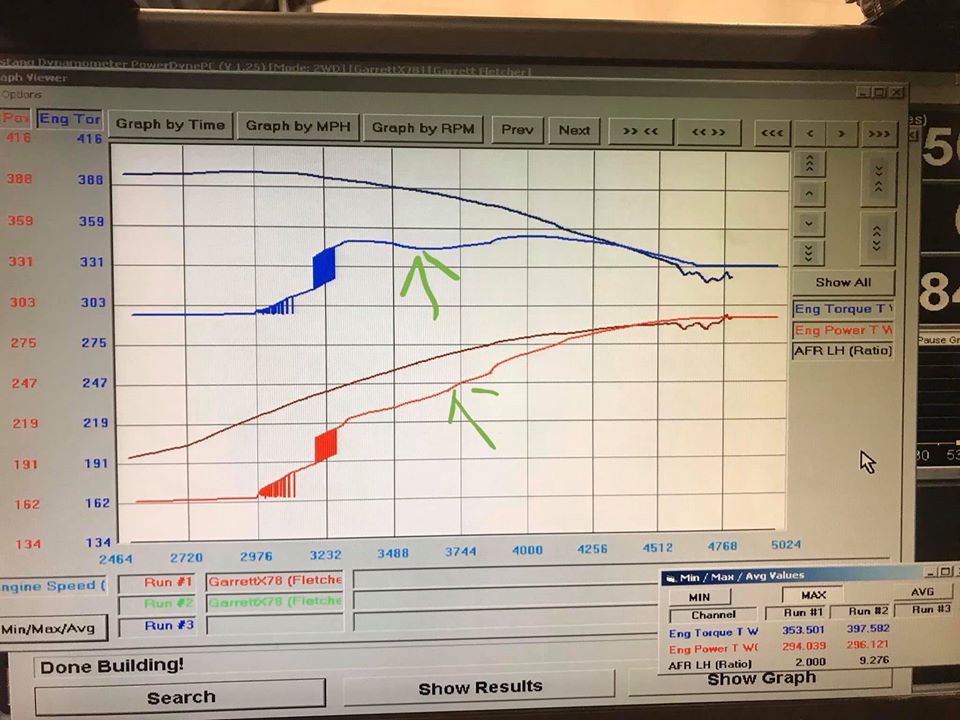

I have dealt with Terry and the fellas for many years and never had any complaints from them. I posted the Airgap manifold testing they did and mine. They even state it- "The torque with keg manifold was extremely strong and flat from the 2700 to 3500 where the FI-Air Gap matched it at about 3600 rpm and from about  4000 was much stronger."  So I spent time labor and money removing a VRP manifold, installing the Hughes and then installing the VRP Ported stock intake back in place. The point still stands, the longer runner stock intake, whether ported or not still makes more torque than any other manifold out there below 3500 rpm. Yes, the M-1 and Airgap make more HP at higher rpms. My dyno testing at API in Utah on the mustang dyno shows the AirGap and 12" Ported Kegger VRP with a 53mm Dual port TB. Hughes is the Green arrow. The Kegger had bad coil on this dyno run breaking up at 4600 (fixed now). If I am building for the drag strip and RPM, the M-1/Indy is the winner of choice not the dual plane. If I am building for trails and pulling, the long runner stock intake is the choice. The second graph is Hughes dyno (Performance Injection Equipment) and the first was mine. The Airgap passes at 4300 rpm and can be worked for even greater gains beyond that. But it took exactly four thousand, three hundred revs per minute to catch the stock reworked intake. 3800-4000 on the Hughes dyno graph. I do not build my setups for drag racing anymore, I run slow trails and pull RV's and quads. That is the core of my work now. Heavy trucks benefit from higher torque~ ask the diesel crowd.
Here is a great article from hughes on their testing-
http://www.hughesengines.com/TechArticles/1fiairgapintakedynotests.php


1 Comment

    Marty Fletcher

    Hands on engine builder and tuner for Dodge since 1993.
